Bulkhead Coaxial Adapter

DC to 90 GHz, 1.35 mm (F) to 1.35 mm (F)
SKU:SCT-EFEF-UB-B

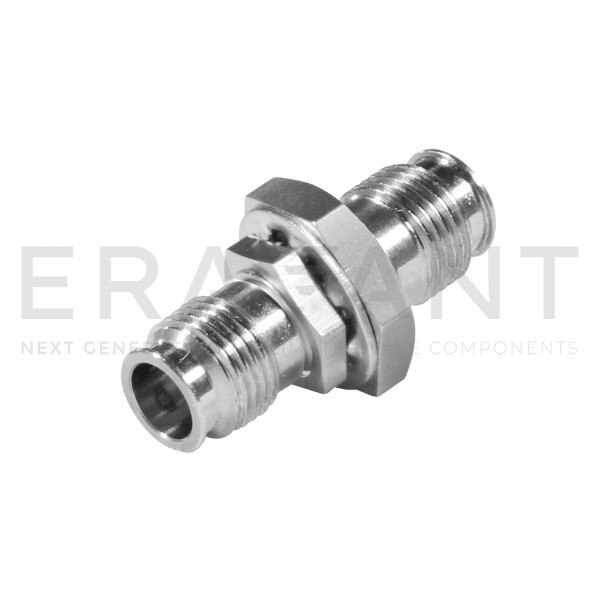

SCT-EFEF-UB-B is a 1.35 mm female to 1.35 mm female coaxial adapter with a bulkhead that covers the frequency range of DC to 90 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a typical return loss of 16 dB. The impedance of the adapter is 50 ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $650.00
10 - 24 $585.00
25 - 49 $526.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency90 GHz
Insertion Loss-
Return Loss16 dB (Typ)
Impedance50 Ohms (Typ)
Connector GenderFemale to Female
Connector Series1.35 mm to 1.35 mm
ConfigurationPanel Mount (Bulkhead)
