2.92 mm (F) Coaxial Transmitter

DC to 7 GHz IF, 17 to 22 GHz RF, 8 to 12 GHz LO

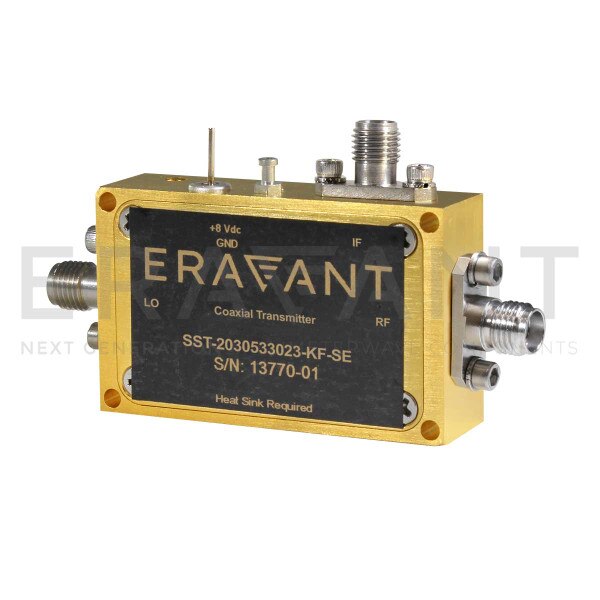

SST-2030533023-KF-SE1 is a coaxial integrated transmitter module for radar systems. The transmitter has a typical conversion gain of 23 dB with a typical P1dB of 28 dBm in the frequency range of 17 to 22 GHz. The required LO power is +5 dBm between frequencies of 8 and 12 GHz. The RF transmit port is a 2.92 mm female connector while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency17 GHz
RF Output Maximum Frequency22 GHz
P1dB28 dBm
Conversion Gain23 dB
LO Frequency10 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF Port2.92 mm (F)
