Coaxial Adapter

DC to 65 GHz, SMPM (GPPO) (M) to 1.85 mm (F)
SKU:SCT-DMVF-UB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

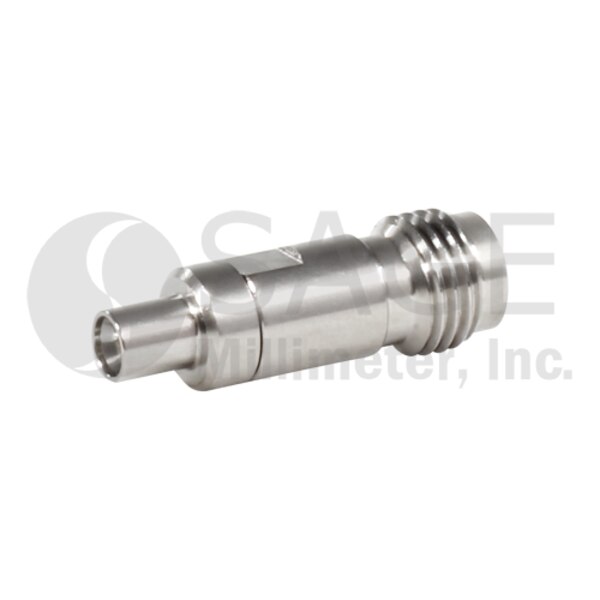

SCT-DMVF-UB is a SMPM (GPPO) male to 1.85 mm female coaxial adapter that covers the frequency range of DC to 65 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 0.7 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$380.00
25 - 49$342.00
50 - 99$307.80

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency65 GHz
Insertion Loss0.7 dB
Return Loss17 dB
Impedance50 Ohms
Connector 1SMPM Male
Connector 21.85 mm Female
