E-Band Transmitter

DC to 6 GHz IF, 76 to 81 GHz RF, 12.5 to 13.33 GHz LO
SKU:SST-7930532225-12-SE1
Availability:Contact Us for Quote

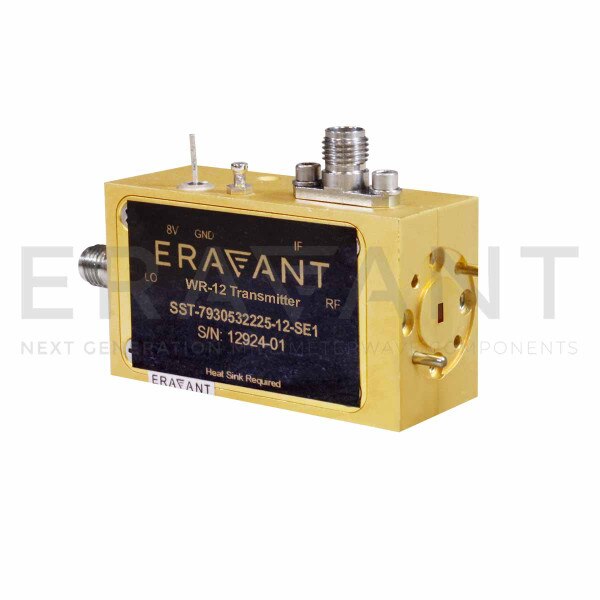

SST-7930532225-12-SE1 is a WR-12 integrated transmitter module for automotive radar applications. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of 21 dBm in the frequency range of 76 to 81 GHz. The required LO power is +5 dBm between frequencies of 12.5 and 13.33 GHz. The RF transmit port is a WR-12 Waveguide with UG-387/U Anti-Cocking Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency76 GHz
RF Output Maximum Frequency81 GHz
P1dB21 dBm
Conversion Gain25 dB
LO Frequency12.92 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-12 WG
