Coaxial Adapter

DC to 50 GHz, 2.4 mm (F) to SMPS (G3PO) (M)
SKU:SCT-2FAM-UB
Availability:4 to 6 Weeks ARO

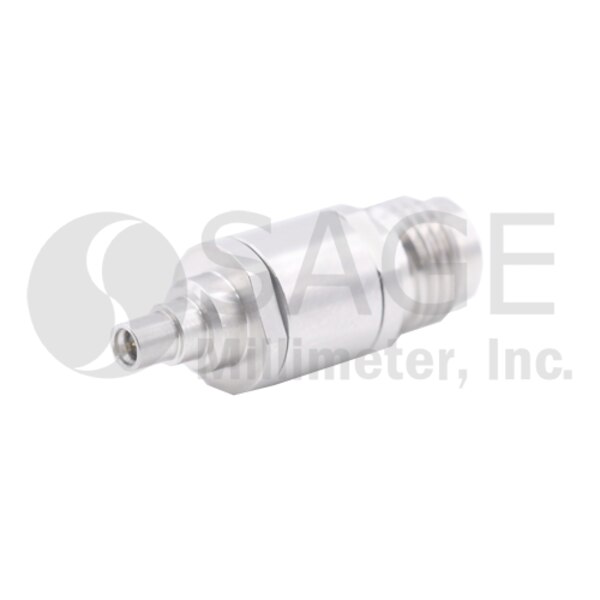

SCT-2FAM-UB is a 2.4 mm female to SMPS (G3PO) male coaxial adapter that covers the frequency range of DC to 50 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$350.00
25 - 49$315.00
50 +$283.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Insertion Loss-
Return Loss17 dB
Impedance50 Ohms
Connector 12.4 mm Female
Connector 2SMPS Male
