High Performance Coaxial Cable Assembly

DC to 50 GHz, 2.4 mm (F) to 2.4 mm (M), 4", Flexible, Phase Matched, GORE ePTFE Cable
SKU:SCW-2F2M004-F2-PM
Availability:Contact Us for Quote
Select up to 4 products to compare.
Select up to 4 products to compare.

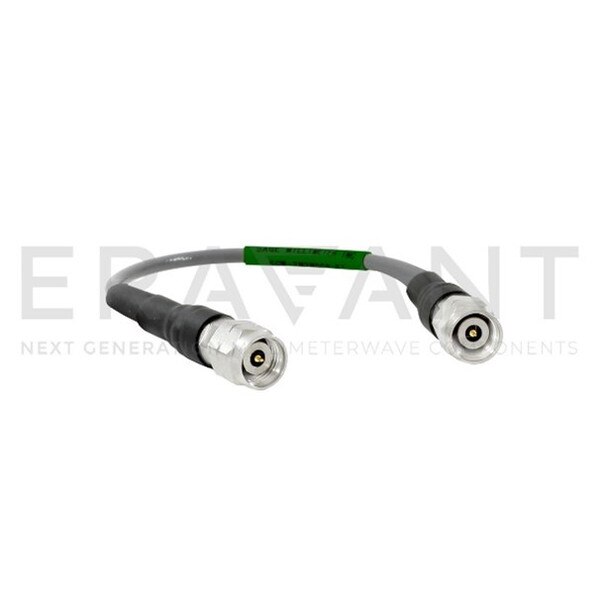

SCW-2F2M004-F2-PM is a 4” long, flexible, phase matched coaxial cable with a 2.4 mm female connector and a 2.4 mm male connector that covers the frequency range of DC to 50 GHz. The coaxial cable utilizes thehighest quality test instrumentation grade GORE ePTFE cable and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
ECCN: EAR99
    Login to view pricing

    Bulk Pricing

    Login to view pricing

    Technical Details

    Minimum FrequencyDC
    Maximum Frequency50 GHz
    Return Loss17.7 dB
    Impedance50 Ohms
    Cable Length4"
    Cable TypeFlexible
    Cable Outer Diameter0.085"
    Minimum Bending Radius0.5"
    Connector 12.4 mm Female
    Connector 22.4 mm Male
