SCM-KM33-UB

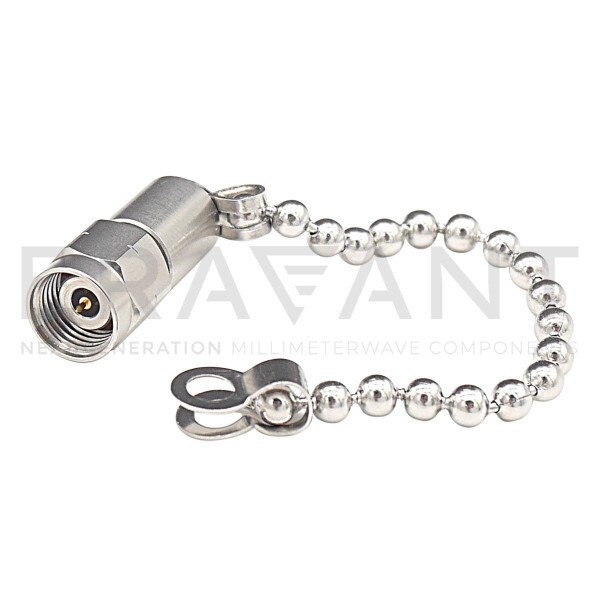

SCM-KM33-UB-C is a 2.92 mm male coaxial matching load that covers the frequency range of DC to 40 GHz. The coaxial matching load exhibits a typical return loss of 19 dB. It is designed and manufactured to offer a good match for system applications. The characteristic impedance of the matching load is 50 Ohms and the power handling is 2 Watts. The female version is available under the model number SCM-KF33-UB-C.
