High Performance Coaxial Cable Assembly, Limited Run

DC to 40 GHz, 2.92 mm (M) to 2.92 mm (M), 12", Flexible, Phase Matched
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCW-KMKM012-F2-PM as an alternative solution. Read more about Limited Run Products here.

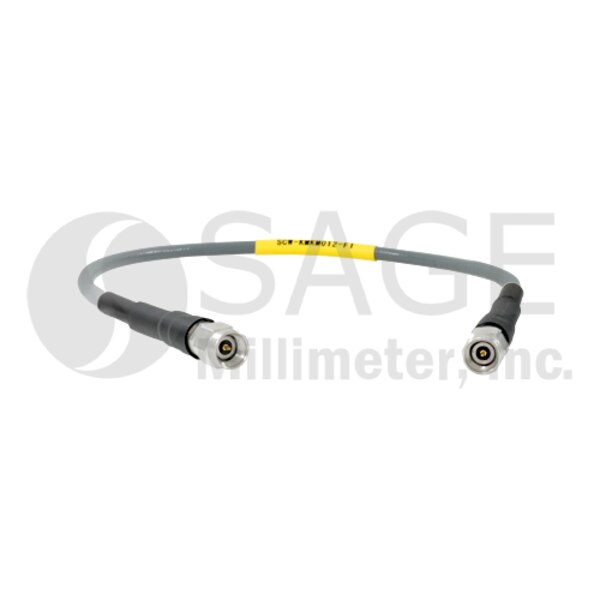

SCW-KMKM012-F1-PM is a 12" long, flexible, phase matched coaxial cable with 2.92 (K) mm male connectors that cover the frequency range of DC to 40 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Return Loss18 dB
Impedance50 Ohms
Cable Length12"
Cable TypeFlexible
Cable Outer Diameter0.142"
Minimum Bending Radius0.7"
Connectors2.92 mm Male
