Coaxial Bulkhead Adapter, Space Qualified, Product Discontinued

DC to 40 GHz, 2.92 mm (F) to 2.92 mm (F)
SKU:SCT-KFKF-U8-B-S
Availability:Product Discontinued
Select up to 4 products to compare.
Select up to 4 products to compare.
This product has been improved and is now listed as SCT-KFKF-U4-B-S and SCT-KFKF-UB-B-V. Read more about Limited Run Products here.

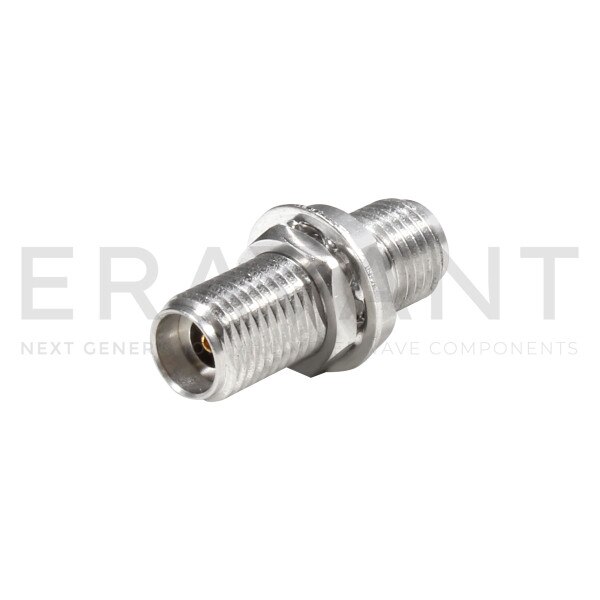

SCT-KFKF-U8-B-S is a space qualified 2.92 mm Female to 2.92 mm female coaxial bulkhead adapter that covers the frequency range of DC to 40 GHz. This coaxial bulkhead adapter offers efficient transitioning between the coaxial connectors with a low insertion loss and typical return loss of 20 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Insertion Loss0.15 dB
Return Loss27 dB
Impedance50 Ohms
Connector GenderFemale to Female
Connector Series2.92 mm to 2.92 mm
ConfigurationPanel Mount (Bulkhead)
