2.92 mm Coaxial Lowpass Filter

DC to 36 GHz, 30 dB Rejection from 60 to 90 GHz
SKU:SCF-36360330-KFKM-L1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

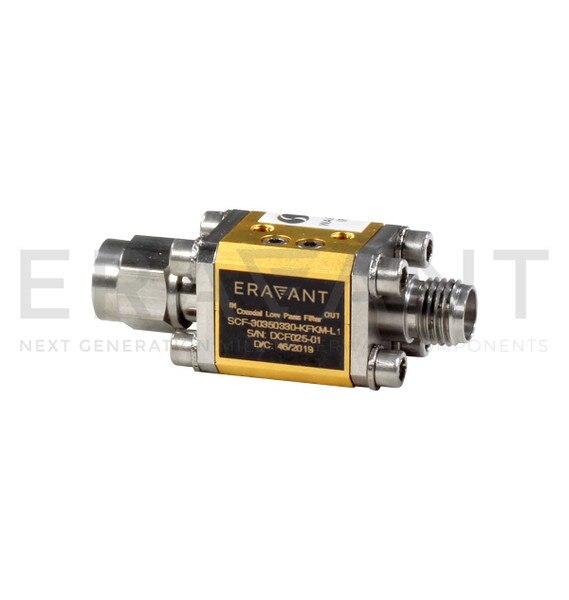

SCF-36360330-KFKM-L1 is a coaxial lowpass filter with a passband from DC to 36 GHz. The typical insertion loss of the passband is 1.0 dB. The rejection band is from 60 to 90 GHz with a typical rejection value of 30 dB. The RF connectors of the filter are K(F) and K(M) connectors. The passband typical return loss is 15 dB. This particular model is recommended for use with Eravant's SFB-12-N1/SFB-12-E2 and SFU-12-N1/SFU-12-E2 E-band balanced mixers and upconverters in order to reduce LO to IF leakage. Other configurations, such as different connectors for input and output are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,650.00
5 - 9$1,485.00
10 - 24$1,336.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency36 GHz
Minimum Rejection Frequency60 GHz
Maximum Rejection Frequency90 GHz
Rejection30 dB
Insertion Loss1.0 dB
Passband Return Loss15 dB
Impedance50 Ohms
Power Handling1 W
RF Ports2.92 mm (F) and 2.92 mm (M)
