Coaxial Adapter

DC to 33 GHz, 3.5 mm (F) to 2.92 mm (M)
SKU:SCT-3FKM-UB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

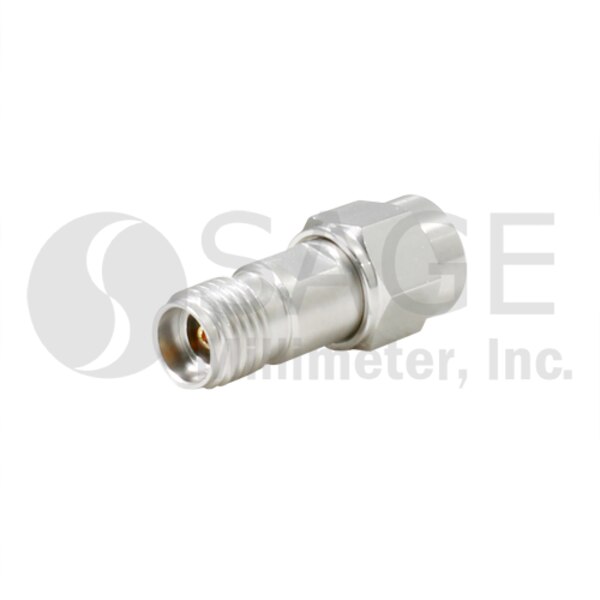

SCT-3FKM-UB is a 3.5 mm female to 2.92 mm male coaxial adapter that covers the frequency range of DC to 33 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 0.5 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 24$160.00
25 - 49$144.00
50 +$129.60

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency33 GHz
Insertion Loss0.5 dB
Return Loss21 dB
Impedance50 Ohms
Connector 13.5 mm Female
Connector 22.92 mm Male
