2.92 mm Coaxial Lowpass Filter

DC to 33 GHz, 25 dB Rejection from 37 to 50 GHz
SKU:SCF-33337325-KFKM-L3
Availability:6 to 8 Weeks ARO

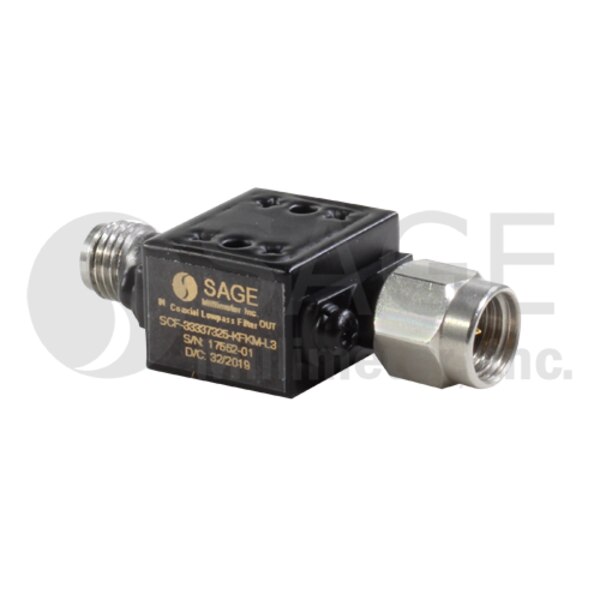

SCF-33337325-KFKM-L3 is a coaxial lowpass filter to pass the frequency of DC to 33 GHz. The maximum insertion loss of the bandpass filter is 2.5 dB and passband ripple is ±0.5 dB. The rejection band is from 37 to 50 GHz and rejection value is 25 dB typical. The RF connectors of the the filter are K(M) and K(F) connectors. The passband return loss of the filter is 10 dB typical. Other configuration, such as different connectors for input and output are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 +$1,377.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency33 GHz
Minimum Rejection Frequency37 GHz
Maximum Rejection Frequency50 GHz
Rejection25 dB
Insertion Loss2.0 dB
Passband Return Loss10 dB
Impedance50 Ohms
Power Handling10 W
RF Ports2.92 mm (M) and 2.92 mm (F)
