2.92 mm Coaxial Lowpass Filter

DC to 30 GHz, 30 dB Rejection from 50 to 75 GHz
Availability:1 Week ARO

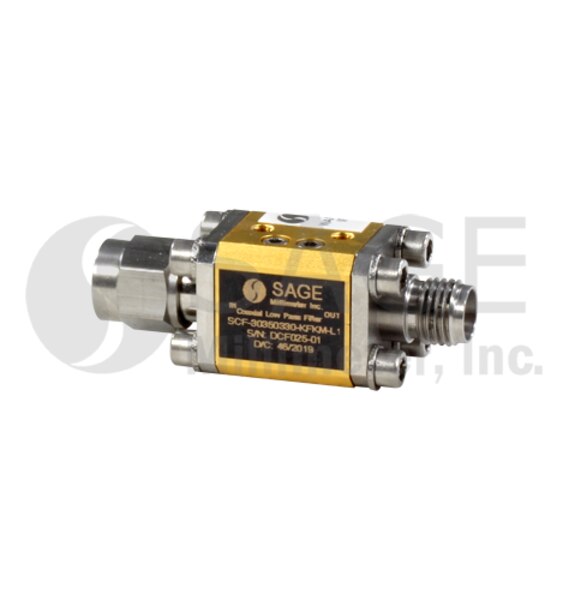

SCF-30350330-KFKM-L1 is a coaxial lowpass filter with a passband from DC to 30 GHz. The typical insertion loss of the passband is 1.0 dB. The rejection band is from 50 to 75 GHz with a typical rejection value of 30 dB. The RF connectors of the filter are K(F) and K(M) connectors. The passband typical return loss is 15 dB. This particular model is recommended for use with Eravant's SFB-15-N1/SFB-15-E2 and SFU-15-N1/SFU-15-E2 E-band balanced mixers and upconverters in order to reduce LO to IF leakage. Other configurations, such as different connectors for input and output are available under different model numbers.
Login to View Pricing

Bulk Pricing

1 - 4$1,550.00
5 - 9$1,395.00
10 - 24$1,255.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency30 GHz
Minimum Rejection Frequency50 GHz
Maximum Rejection Frequency75 GHz
Rejection30 dB
Insertion Loss1.0 dB
Passband Return Loss15 dB
Impedance50 Ohms
Power Handling1 W
RF Ports2.92 mm (F) and 2.92 mm (M)
