Coaxial Cable Assembly

DC to 26.5 GHz, SMA (M) to SMA (M), 48", Semi-Rigid, Phase Matched
SKU:SCW-SMSM048-S1-PM
Availability:IN STOCKPlease contact us if you need more units than what is available online.

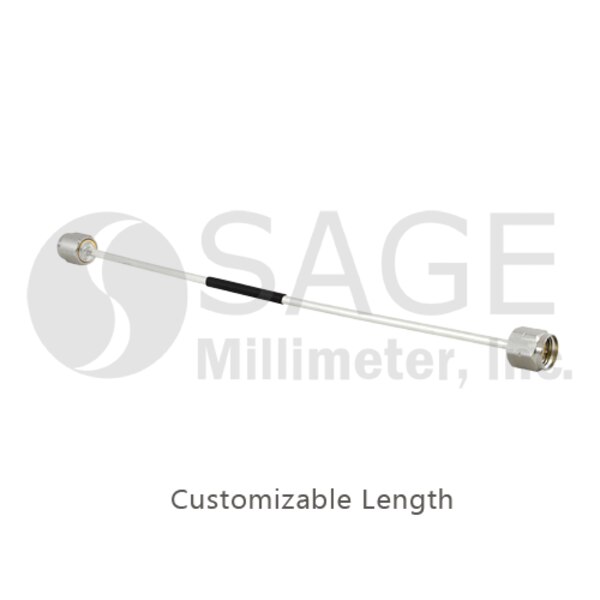

SCW-SMSM048-S1-PM is a 48" long, semi-rigid, phase matched coaxial cable with SMA male connectors that cover the frequency range of DC to 26.5 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency26.5 GHz
Return Loss17 dB
Impedance50 Ohms
Cable Length48"
Cable TypeSemi-Rigid
Cable Outer Diameter0.087"
Minimum Bending Radius0.126"
ConnectorsSMA (M)
