3.5 mm (F) Metrology Grade Coaxial Matched Load, Limited Run

DC to 26.5 GHz, 0.5 Watt
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model scheduled to be discontinued, so inventory will not be restocked. Read more about Limited Run Products here.

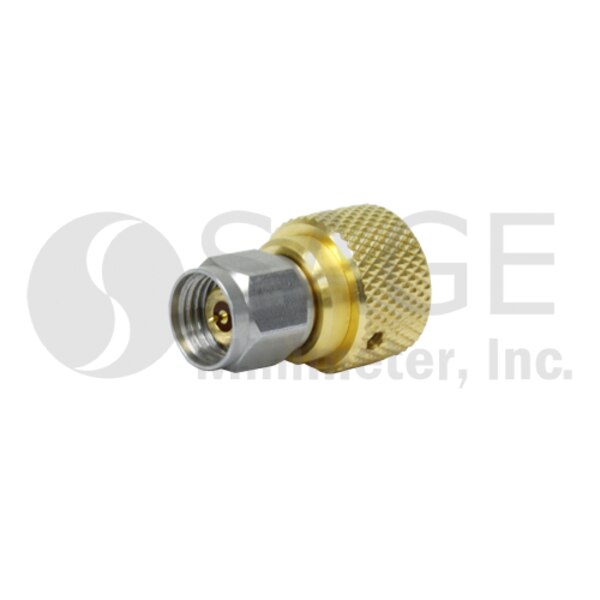

STQ-CM-3M27-U2 is a metrology grade 3.5 mm male coaxial matching load that covers the frequency range of DC to 26.5 GHz. The coaxial matching load exhibits a typical return loss of 30 dB. It is designed and manufactured to offer a good match for system applications. The characteristic impedance of the matching load is 50 Ohms and the power handling is 0.5 watt. The female version is available under the model number STQ-CM-3F27-U2.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $610.00
10 - 24 $549.00
25 - 49 $494.10

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency26.5 GHz
Return Loss25 dB
Impedance50 Ohms
Power Handling0.5 W
Connector3.5 mm Male
