2.92 mm Coaxial Lowpass Filter

DC to 20 GHz, 30 dB Rejection from 23 to 40 GHz
SKU:SCF-20323330-KFKM-L3
Availability:3 Days ARO

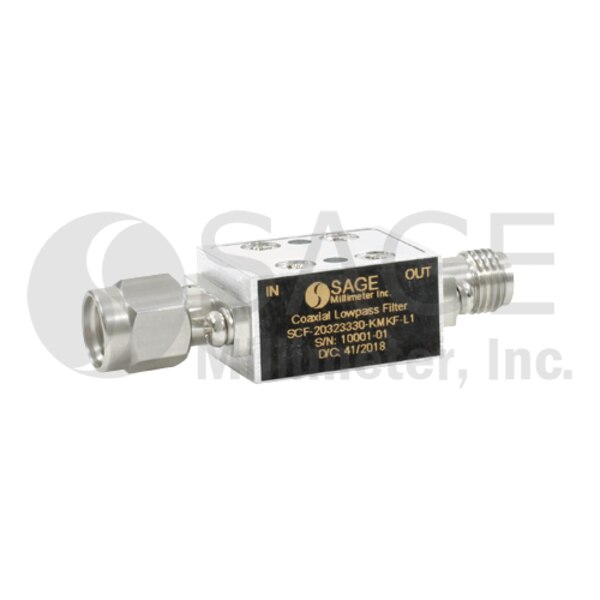

SCF-20323330-KFKM-L3 is a coaxial lowpass filter to pass the frequency of DC to 20 GHz. The maximum insertion loss of the bandpass filter is 2.5 dB and passband ripple is ±0.5 dB. The rejection band is from 23 to 40 GHz and rejection value is 30 dB typical. The RF connectors of the the filter are K(M) and K(F) connectors. The passband return loss of the filter is 10 dB typical. Other configuration, such as different connectors for input and output are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,200.00
5 - 9$1,080.00
10 - 24$972.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency20 GHz
Minimum Rejection Frequency23 GHz
Maximum Rejection Frequency40 GHz
Rejection30 dB
Insertion Loss1.5 dB
Return Loss10 dB Max
Impedance50 Ohms
Power Handling1 W
RF Ports2.92 mm (F) and 2.92 mm (M)
