V-Band Transmitter

DC to 16 GHz IF, 56 to 71 GHz RF, 9.17 to 12.17 GHz LO
SKU:SST-6431532525-15-SE1

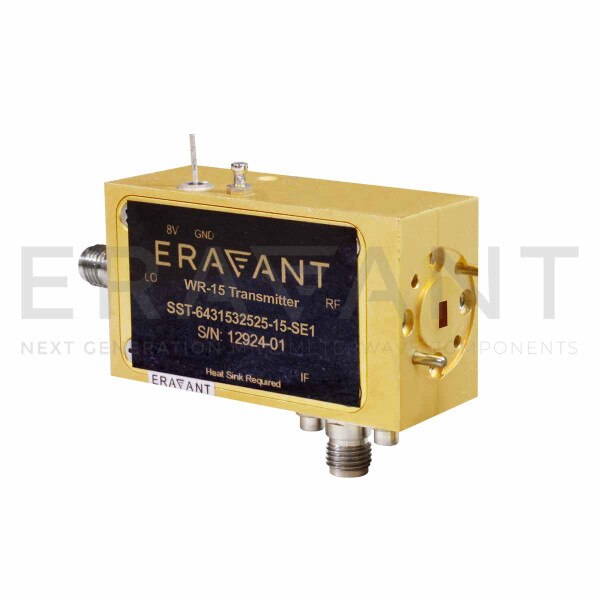

SST-6431532525-15-SE1 is a WR-15 integrated transmitter module for communication systems. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of 25 dBm in the frequency range of 56 to 71 GHz. The required LO power is +5 dBm between frequencies of 9.17 and 12.17 GHz. The RF transmit port is a WR-15 Waveguide with UG-385/U Anti-Cocking Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
ECCN: 3A001.b.7.b.2
Login to view pricing

Bulk Pricing

Quantity Price
1 $7,250.00
2 $6,887.50
3 - 4 $6,543.13

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency56 GHz
RF Output Maximum Frequency71 GHz
P1dB25 dBm
Conversion Gain25 dB
LO Frequency14.5 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-15 WG
