W-Band Transmitter

DC to 12 GHz IF, 90 to 100 GHz RF, 11 to 12.5 GHz LO
SKU:SST-9531032425-10-SE1

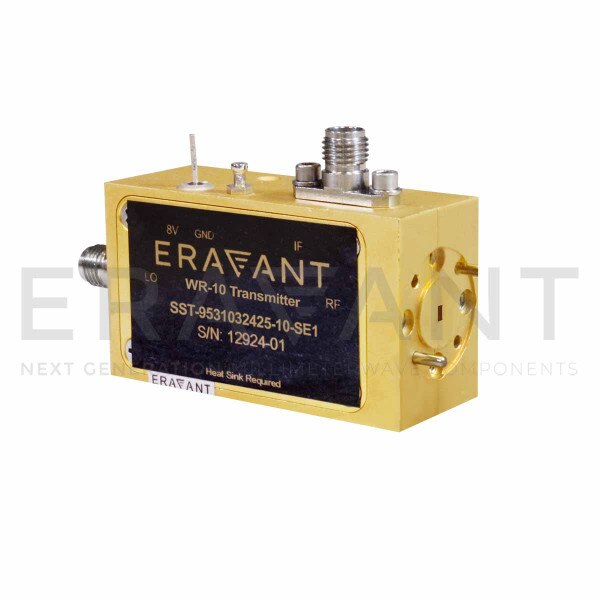

SST-9531032425-10-SE1 is a WR-10 integrated transmitter module for radar systems. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of 24 dBm in the frequency range of 90 to 100 GHz. The required LO power is +5 dBm between frequencies of 11 and 12.5 GHz. The RF transmit port is a WR-10 Waveguide with UG-387/U-M Anti-Cocking Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
ECCN: 3A001.b.7.c.3
Login to view pricing

Bulk Pricing

Quantity Price
1 $7,450.00
2 $7,077.50
3 - 4 $6,723.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency90 GHz
RF Output Maximum Frequency100 GHz
P1dB24 dBm
Conversion Gain25 dB
LO Frequency11.75 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-10 WG
