High Performance Coaxial Cable Assembly

DC to 110 GHz, 1 mm (M) to 1 mm (M), 3" Semi-Rigid
SKU:SCW-1M1M003-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

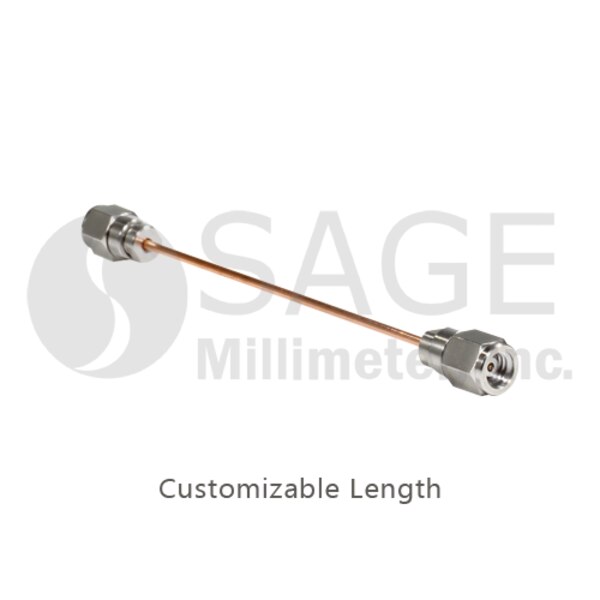

SCW-1M1M003-S1 is a 3" long, semi-rigid high performance coaxial cable with 1 mm male connectors that cover the frequency range of DC to 110 GHz. The 1.35 mm coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms and a capacitance of 95 pF/m. Other lengths are offered under different models.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $2,000.00
5 - 9 $1,800.00
10 - 24 $1,620.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Return Loss13 dB
Impedance50 Ohms
Cable Length3"
Cable TypeSemi-Rigid
Cable Outer Diameter0.047"
Minimum Bending Radius0.126"
Connectors1 mm Male
