Coaxial Adapter

DC to 110 GHz, 1.0 mm (M) to 1.0 mm (M)
SKU:SCT-1M1M-UB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

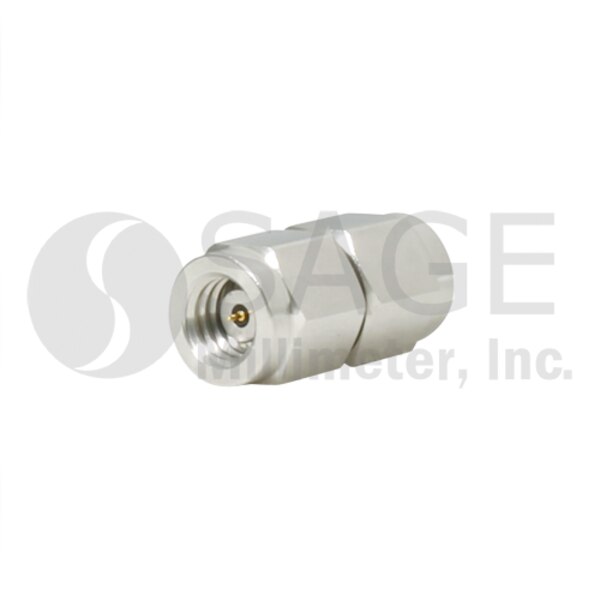

SCT-1M1M-UB is a 1 mm male to 1 mm male coaxial adapter that covers the frequency range of DC to 110 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 0.6 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$830.00
10 - 24$747.00
25 - 49$672.30

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Insertion Loss0.6 dB
Return Loss16 dB
Impedance50 Ohms
Connector 11.0 mm Male
Connector 21.0 mm Male
