High Performance Coaxial Adapter

DC to 110 GHz, 1.0 mm (F) to 1.0 mm (F)
Availability:IN STOCKPlease contact us if you need more units than what is available online.

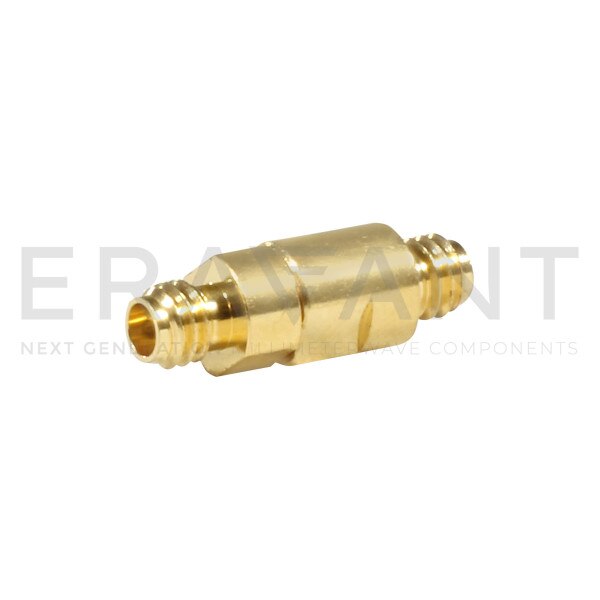

SCT-1F1F-U7 is a high performance 1 mm female to 1 mm female coaxial adapter that covers the frequency range of DC to 110 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and maximum insertion loss of 0.6 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Insertion Loss0.6 dB
Return Loss16 dB
Impedance50 Ohms
Connector GenderFemale to Female
Connector Series1.0 mm to 1.0 mm
ConfigurationIn-line (180°)
