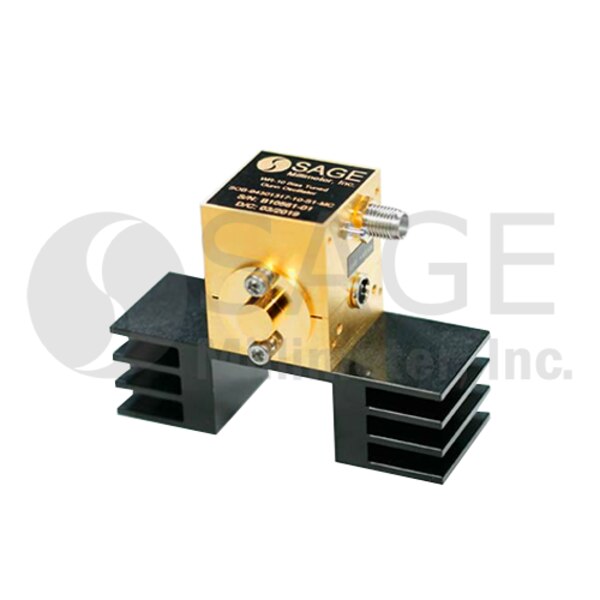

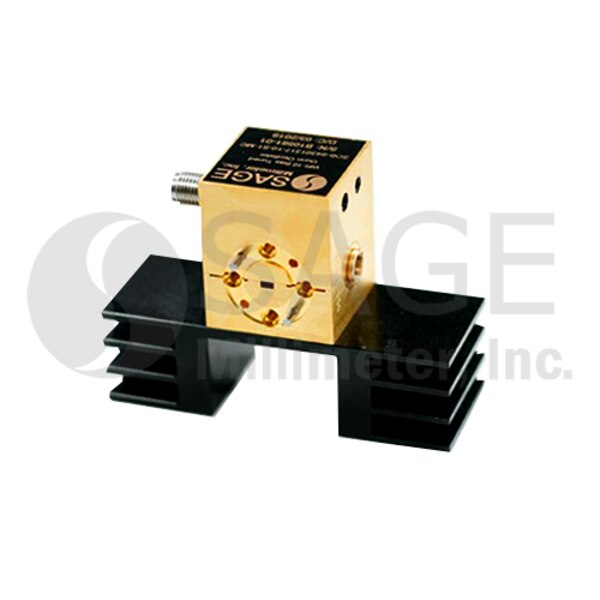

E-Band Bias Tuned Gunn Oscillator

75 GHz, ±250 MHz Tuning Bandwidth, +18 dBm Output Power, WR-12 Waveguide
SOB-75305218-12-S1 is an E-Band Bias Tuned Gunn Oscillator that utilizes a high performance InP Gunn diode and proprietary cavity design to deliver +18 dBm typical power directly with a frequency tuning range of ±250 MHz. The oscillator delivers low AM/FM noise and harmonic emissions in the wide mechanical tuning range. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is an alternative lower cost and cleaner source. The center frequency of the oscillator can be mechanically trimmed via a self-locking set screw within ±1.0 GHz frequency range.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency75 GHz
Output Power+18 dBm
Mechanical Tuning Range±1 Gz
Bias Tuning Range (+4.2 to +5.2 VDC)±250 MHz
Bias+10.5 VDC/250 mA
RF PortWR-12 Waveguide
Mechanical TuningSelf-Locking Set Screw
