W-Band Junction Isolator

92 to 98 GHz, 18 dB Isolation, WR-10 Waveguide
SKU:SNW-9239831018-10-I1
Availability:Contact Us for Quote

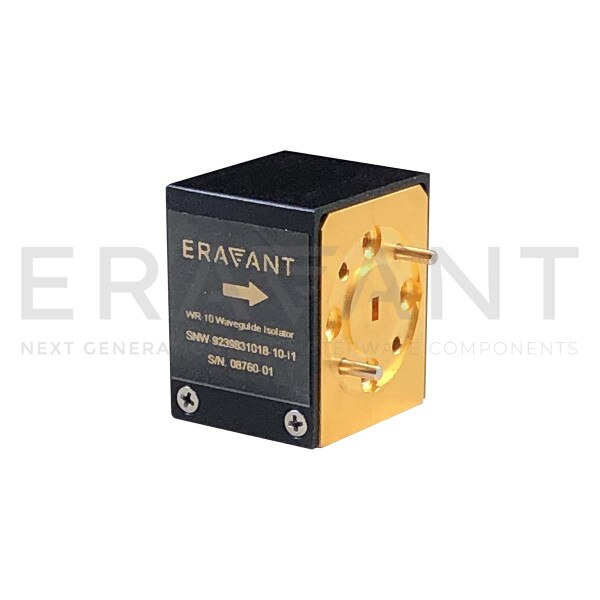

SNW-9239831018-10-I1 is an W band waveguide junction isolator that covers the frequency range of 92 to 98 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers an insertion loss of 1.0 dB typical and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a nominal isolation of 18 dB. The input and output ports are WR-10 waveguides with UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency92 GHz
Maximum Frequency98 GHz
Insertion Loss1.0 dB
Isolation18 dB
Return Loss16 dB
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-10 Waveguide
Device TypeIsolator
