W-Band Image Rejection Transmitter

92 to 96 GHz, 5 dBm LO Input Power, 11 GHz LO Frequency
SKU:SST-9430432030-10-M1-I

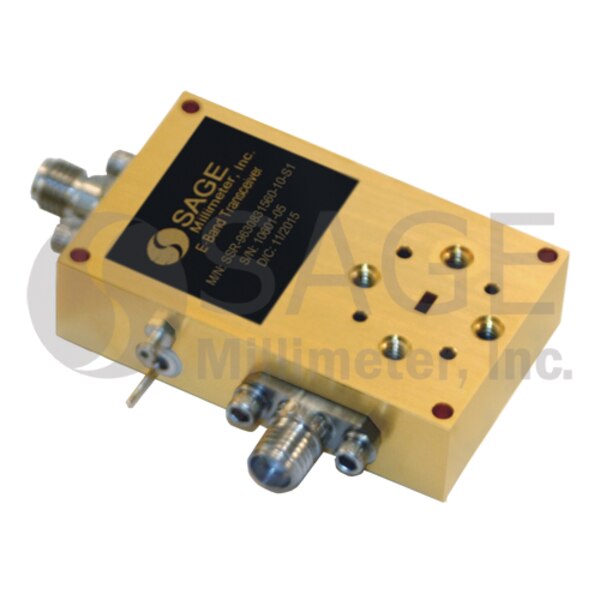

SST-9430432030-10-M1-I is a W-Band image rejected transmitter. The transmitter has a typical conversion gain of 20 dB with a typical IF input power of -20 dBm in the frequency range of 4 to 8 GHz and a RF output frequency range of 92 to 96 GHz. The transmitter has a build in x8 multiplier, which requires the typical input LO power and frequency of 5 dBm and 11.0 GHz, respectively. With the build-in IF hybrid, the receiver offers 20 dB image rejection level typically. The LO and IF port are equipped with female SMA connectors and the RF port is a WR-10 waveguide with a UG-387/U-M flange.
ECCN: 3A001.b.7.b.1
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency92 GHz
RF Output Maximum Frequency96 GHz
P1dB20 dBm
Conversion Gain20 dB
LO Frequency11 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-10 Waveguide
