W-Band Receiver

90 to 96 GHz, 5 dB Noise Figure, 30 dB RF to IF Conversion Gain
SKU:SSR-9330634030-10-M1-I
Availability:IN STOCKPlease contact us if you need more units than what is available online.

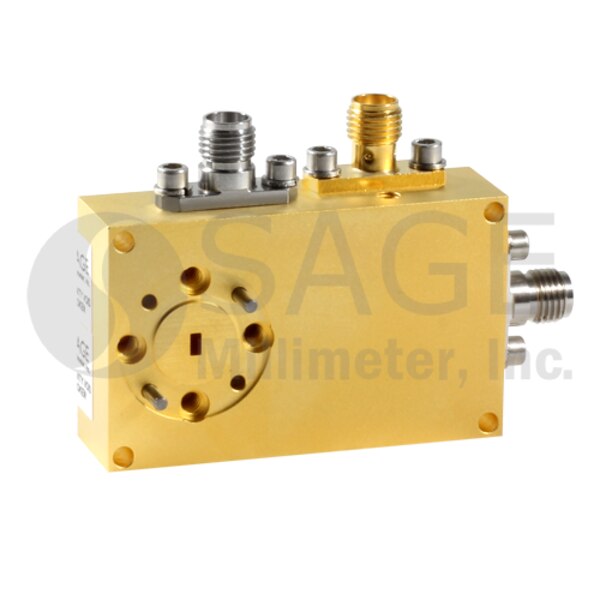

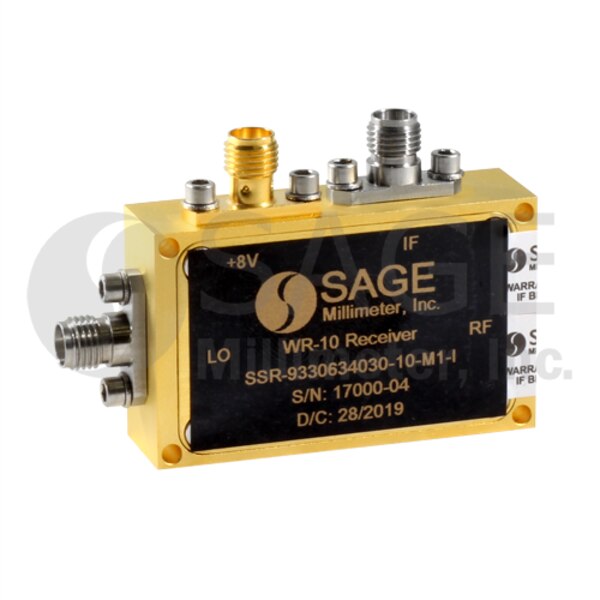

SSR-9330634030-10-M1-I is a W-Band image rejected receiver. The receiver has a typical conversion gain of 30 dB with a typical RF input power of -60 dBm in the frequency range of 90 to 96 GHz and an IF output frequency range of 5 to 11 GHz. The receiver has a built-in x8 multiplier which requires a typical input LO power and frequency of +5 dBm and 10.625 GHz, respectively. With the built-in IF hybrid, the receiver typically offers a 20 dB image rejection level. The LO and IF port are both equipped with female SMA connectors and the RF port is a WR-10 waveguide with a UG-387/U-M flange.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Quantity Price
1 $10,500.00
2 $9,975.00
3 - 4 $9,476.25

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

RF Input Minimum Frequency90 GHz
RF Input Maximum Frequency96 GHz
Conversion Gain30 dB
LO Frequency10.875 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-10 Waveguide
