WR-08 Waveguide Detector

90 to 140 GHz, 300 mV/mW Sensitivity, Positive Polarity, F-Band
SKU:STD-08SF-PI
Availability:1 Week ARO

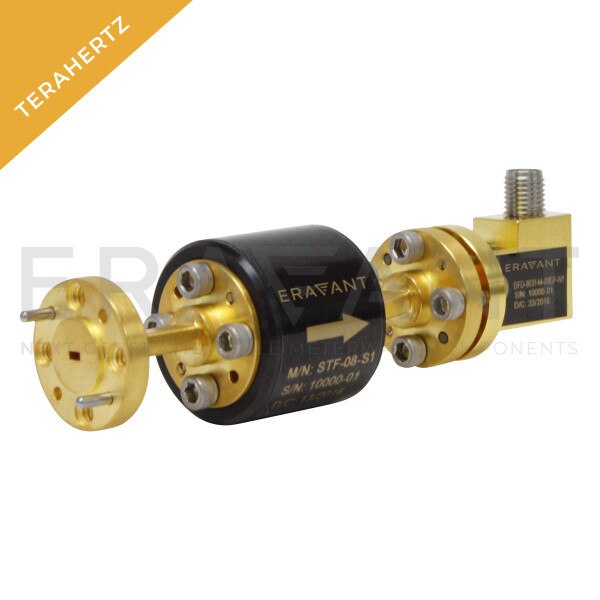

STD-08SF-PI is an F Band waveguide detector that covers the frequency range of 90 to 140 GHz. The detector is zero biased and intended for small signal detection and network analyzer applications. Due to the proprietary circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm. The Faraday isolator is integrated to improve the input port VSWR.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,150.00
3 - 4$2,992.50
5 +$2,842.88

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Sensitivity300 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
VSWR1.4
Output Voltage PolarityPositive
RF PortWR-08 Waveguide
