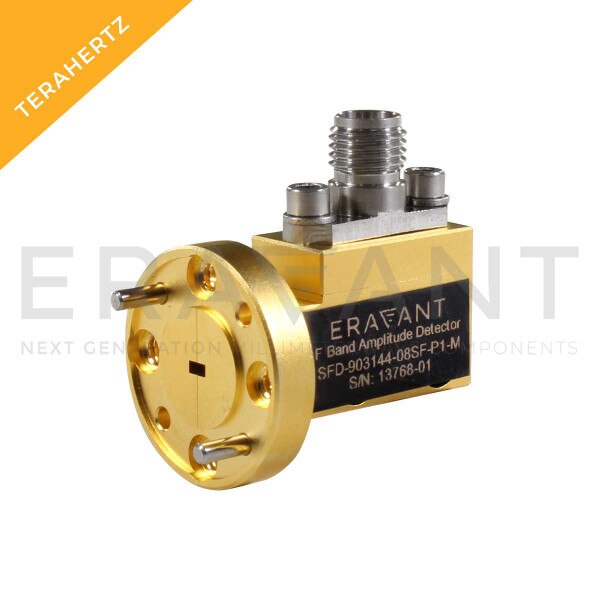

Positive Amplitude Detector

90 to 140 GHz, 2000 mV/mW Sensitivity, WR-08 Waveguide
SKU:SFD-903144-08SF-P1-M
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFD-903144-08SF-P1-M is a WR-08 amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. The detector exhibits high sensitivity characteristics across the full waveguide operating bandwidth. The detector is designed to have a 10 MHz video bandwidth and a 1 MΩ video output impedance.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Sensitivity2000 mV/mW
Sensitivity Flatness-
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityPositive
RF PortWR-08 Waveguide
DC PortSMA (F)
