W-Band Mechanically Tuned Gunn Oscillator

90 GHz, ±2.00 GHz Tuning Bandwidth, +16 dBm Output Power, WR-10 Waveguide

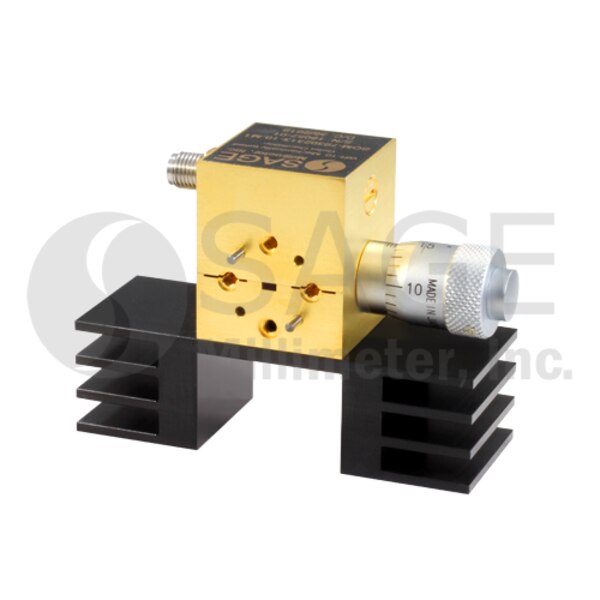

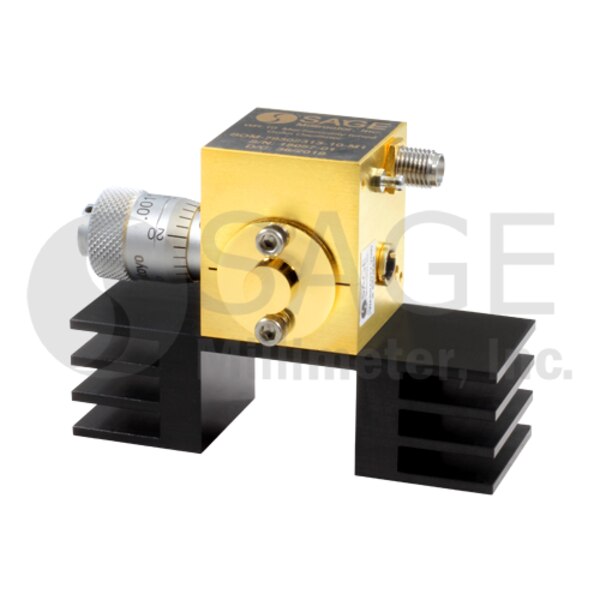

SOM-90304316-10-M1 is a W-Band, mechanically tuned Gunn oscillator that utilizes a high-performance GaAs Gunn diode and proprietary cavity design to deliver +16 dBm typical power. The oscillator features a frequency tuning range of 88 to 92 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier-based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator’s frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a micrometer for quick frequency tuning and test bench applications. Models with a self-locking set screw for system integration are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,650.00
3 - 4 $4,417.50
5 - 9 $4,196.63

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Center Frequency90 GHz
Output Power+16 dBm
Mechanical Tuning Range±2 GHz
Bias Tuning Range-
Bias+4 VDC/750 mA
RF PortWR-10 Waveguide
Mechanical TuningMicrometer
