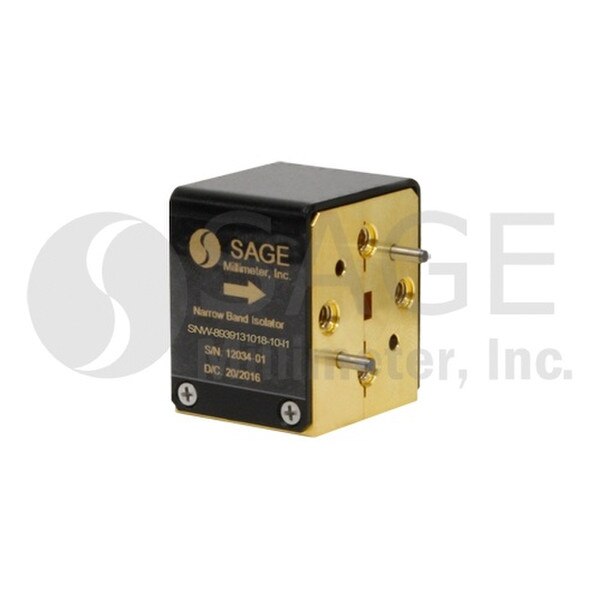

W-Band Junction Isolator

89 to 91 GHz, 18 dB Isolation, WR-10 Waveguide
SKU:SNW-8939131018-10-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SNW-8939131018-10-I1 is a W band, waveguide junction isolator that covers the frequency range of 89 to 91 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 1.0 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 18 dB. The input and output ports are WR-10 waveguides with UG-387/U-M flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $930.00
10 - 24 $837.00
25 - 49 $753.30

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency89 GHz
Maximum Frequency91 GHz
Insertion Loss1.0 dB
Isolation18 dB
VSWR1.4
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-10 Waveguide
Device TypeIsolator
