W-Band Power Amplifier

88 to 96 GHz, 12 dB Gain, +32 dBm Psat, WR-10 Waveguide
SKU:SBP-8839631232-1010-C1-HR
Availability:Contact Us for Quote

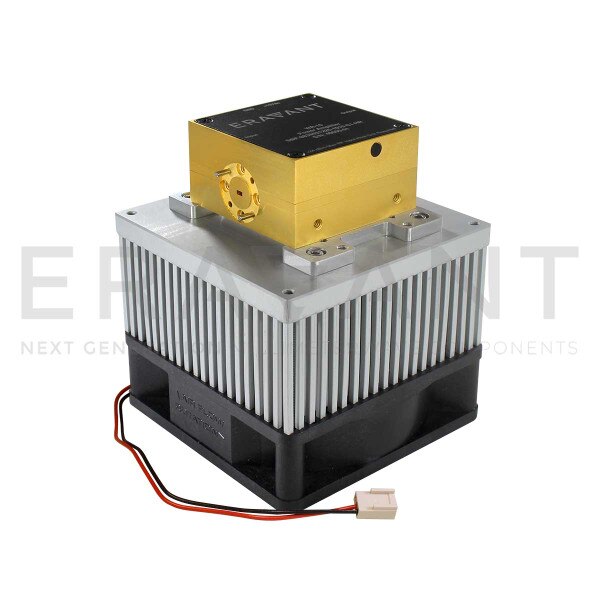

SBP-8839631232-1010-C1-HR is a W-Band, power amplifier with a typical small signal gain of 12 dB and a nominal Psat of +32 dBm across the frequency range of 88 to 96 GHz. The DC power requirement for the amplifier is +15 VDC/ 1.1A. The mechanical configuration offers an in-line structure with WR-10 waveguides and UG-387/U-M anti-cocking flanges. A heat sink is included for cooling.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency88 GHz
Maximum Frequency96 GHz
Gain12 dB
P1dB+25 dBm
Psat+32 dBm
Input Return Loss8 dB
Output Return Loss8 dB
DC Voltage+15 VDC
DC Bias700 mA
RF Input/OutputWR-10 Waveguide
ConfigurationHeatsink Included
