E-Band Receiver

81 to 86 GHz, DC to 6 GHz IF, +5 dBm LO Power
SKU:SSR-8430535010-12-SR1

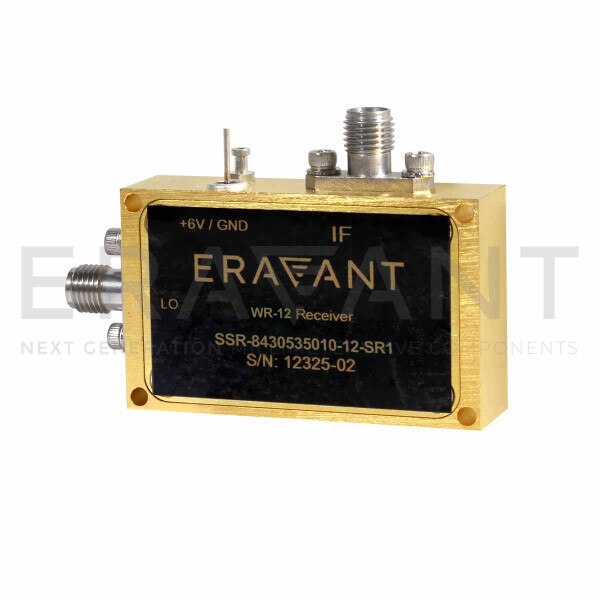

SSR-8430535010-12-SR1 is a WR-12 integrated receiver module for communication systems. The receiver has a typical conversion gain of 10 dB with a typical Noise Figure of 5 dB in the frequency range of 81 to 86 GHz. The required LO power is +5 dBm between frequencies of 13.33 and 14.33 GHz. The RF receive port is WR-12 Waveguide with UG-387/U Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $5,850.00
2 $5,557.50
3 - 4 $5,279.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency81 GHz
Maximum RF Frequency86 GHz
Noise Figure5 dB
Gain10 dB
Minimum LO Frequency13.33 GHz
Maximum LO Frequency14.33 GHz
LO Input Power+5 dBm
Bias Voltage8 VDC
RF PortWR-12 Waveguide
