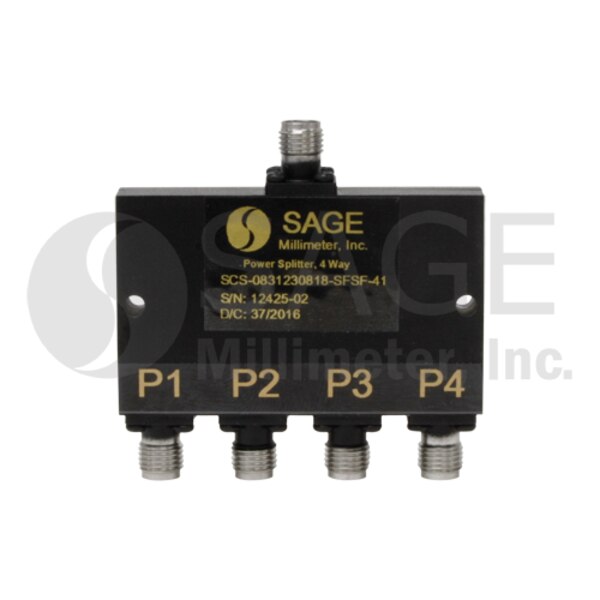

4-Way Coaxial Power Splitter

8 to 12.4 GHz, SMA (F)
SKU:SCS-0831230818-SFSF-42
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCS-0831230818-SFSF-42 is a coaxial 4-way power splitter with a typical insertion loss of 0.8 dB at each output port and a typical isolation of 18 dB across the frequency range of 8 to 12.4 GHz. The power splitter has a nominal power handling of 30 W (CW) and a typical amplitude unbalance of ±0.4 dB. The return loss for all ports is 14 dB typical. The RF connectors of the power splitter are female SMA connectors.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 24 $310.00
25 - 49 $279.00
50 - 99 $251.10

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency8 GHz
Maximum Frequency12.4 GHz
Ways4
Insertion Loss0.8 dB
Port Isolation18 dB
Return Loss14 dB
Impedance50 Ohms
RF ConnectorsSMA (F)
