Dual-Polarized Quad-Ridged Horn

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-QR.
A 2D pattern measurement test is offered under service number FTA-0400PATT-QR.

CLICK HERE to read more about our antenna measurement capabilities.

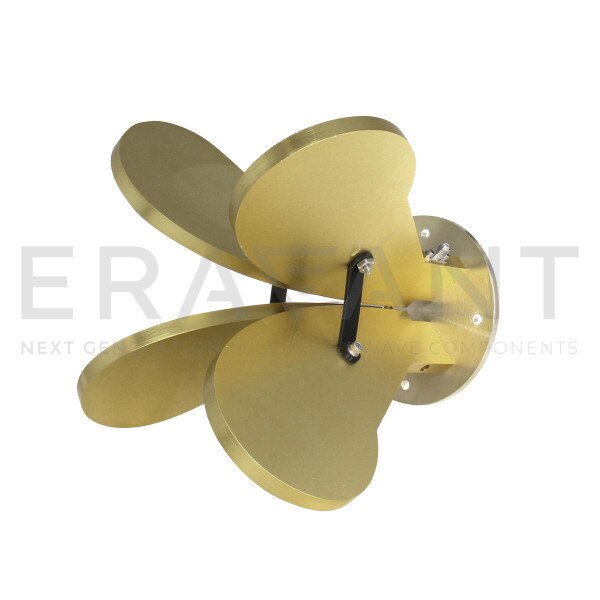

SAV-0130430883-SF-U4-QR is a quad ridged, dual polarized antenna feed that operates from 1 GHz to 4 GHz. The antenna offers 8.0 dBi nominal gain and a typical half power beamwidth of 68 degrees on the E-plane and 98 degrees on the H-plane. The typical side lobe level is -10 dB and the port isolation is 20 dB at center frequency, respectively. The antenna supports linear polarized waveforms and can form the circular polarized waveform if the two ports are fed with 90 degree phase differenced and equal amplituded signals. The antenna has four 0.20" holes for mounting. The RF ports of the antenna are equipped with two female SMA (F) coaxial connectors.
