W-Band Junction Circulator

78 to 86 GHz, 16 dB Isolation, WR-10 Waveguide
SKU:SNW-7838630816-10-CH
Availability:IN STOCKPlease contact us if you need more units than what is available online.

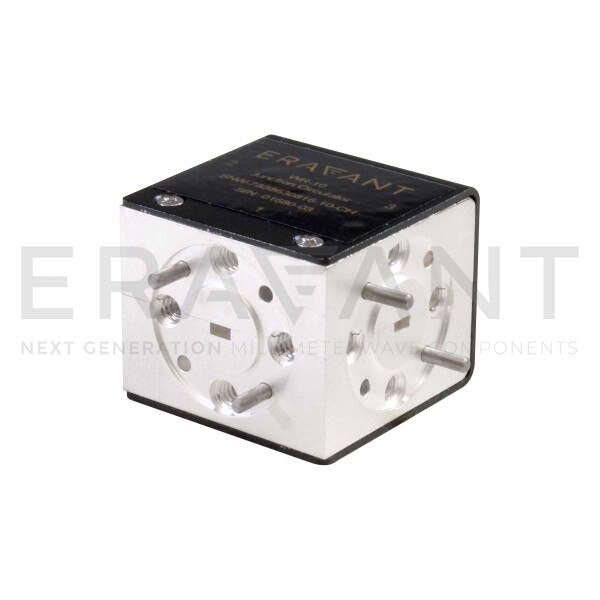

SNW-7838630816-10-CH is a W band waveguide junction circulator that covers the frequency range of 78 to 86 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.8 dB nominal, a typical isolation of 16 dB, and a much shorter insertion length for system integration. The input and output ports are WR-10 waveguides with UG-387/U-M anti-cocking flanges.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,350.00
5 - 9$1,215.00
10 +$1,093.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency78 GHz
Maximum Frequency86 GHz
Insertion Loss0.8 dB
Isolation16 dB
Return Loss16 dB
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-10 Waveguide
Device TypeCirculator
