E-Band Quadrature Mixer, Limited Run

This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SFQ-75311415-1010SF-N1-M as an alternative solution. Read more about Limited Run Products here.

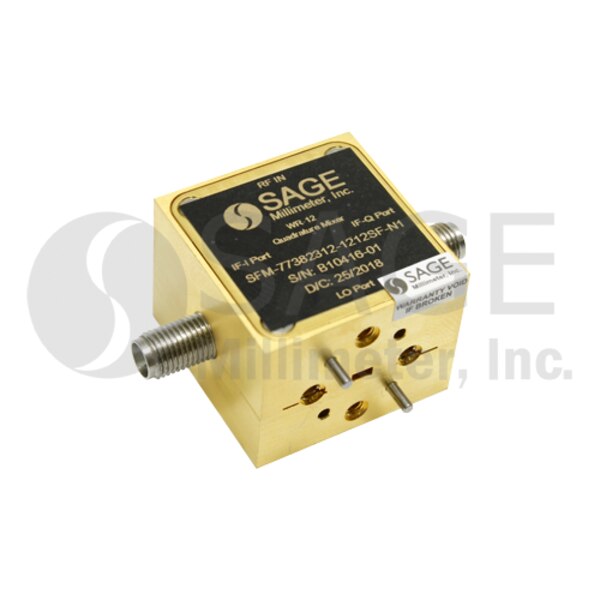

SFQ-77382312-1212SF-N1 is an E Band quadrature mixer that covers the frequency range of 77 to 82 GHz. The typical conversion loss of the quadrature mixer is 12 dB with an LO driving power of +16 dBm. The typical LO to RF port isolation is 30 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
