E-Band Junction Isolator

76 to 81 GHz, 18 dB Isolation, WR-12 Waveguide
SKU:SNW-7638130818-12-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

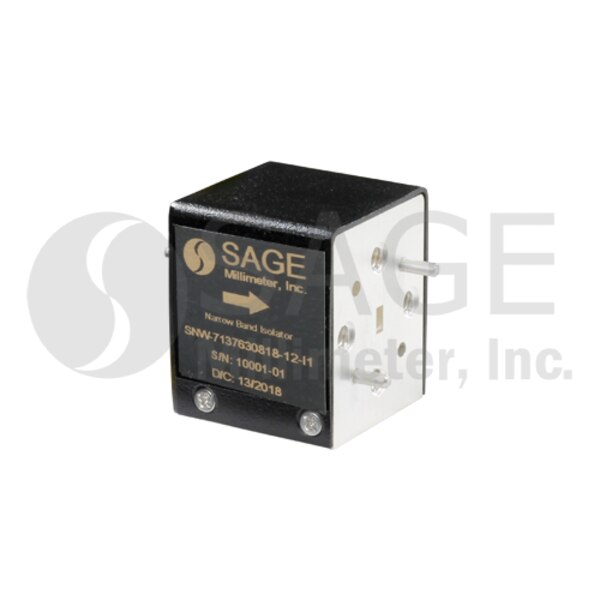

SNW-7638130818-12-I1 is an E band waveguide junction isolator that covers the frequency range of 76 to 81 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.8 dB typical and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a nominal isolation of 18 dB. The input and output ports are WR-12 waveguides with UG-387/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $900.00
10 - 24 $810.00
25 - 49 $729.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency76 GHz
Maximum Frequency81 GHz
Insertion Loss0.8 dB
Isolation18 dB
Return Loss16 dB
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-12 Waveguide
Device TypeIsolator
