E-Band Mechanically Tuned Gunn Oscillator

76 GHz, ±1.0 GHz Tuning Bandwidth, +17 dBm Output Power, WR-12 Waveguide
SKU:SOM-76302317-12-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

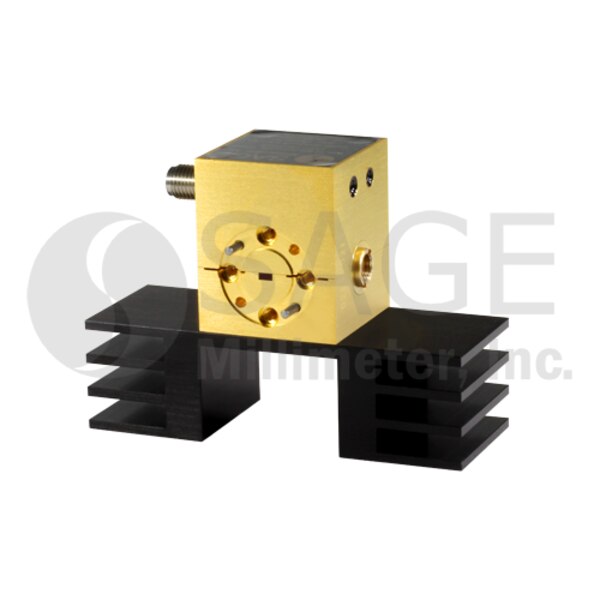

SOM-76302317-12-S1 is an E-band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +17 dBm typical power. The oscillator features a frequency tuning range of 75 to 77 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,800.00
3 - 4$3,610.00
5 - 9$3,429.50

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency76 GHz
Output Power+17 dBm
Mechanical Tuning Range±1.0 GHz
Bias Tuning Range (+5.2 to +5.8 VDC)±250 MHz
Bias+5.5 VDC/750 mA
RF PortWR-12 Waveguide
Mechanical TuningSelf-Locking Set Screw
