E-Band Single Channel, Doppler Sensor Module

76.50 GHz, +23 dBm Transmitting Power
SKU:SSM-77323-S1

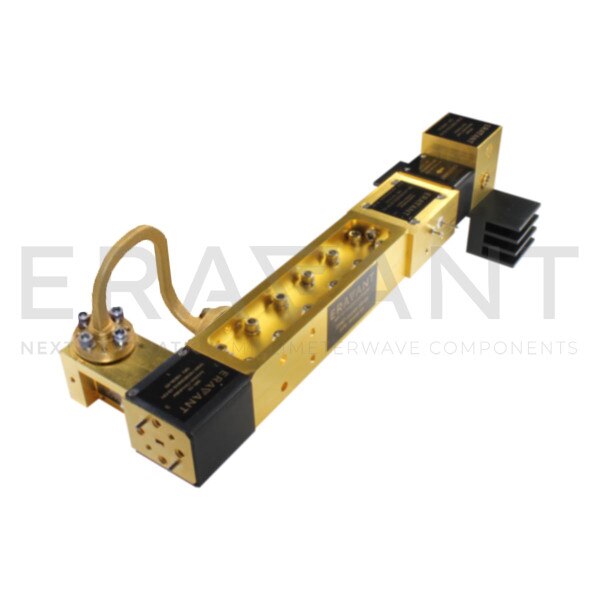

SSM-77323-S1 is an E band Doppler sensor module that is designed and manufactured for medium range measurements of a moving target's speed. The sensor module has an operating frequency of 76.5 GHz and takes a nominal bias of +8.0 VDC/950 mA. The sensor module is configured with a mechanically tuned oscillator, an isolator, a directional coupler, a circulator, a balanced mixer, and an oscillator voltage regulator. The directional coupler is used to sample the LO power to pump the mixer, and the circulator is used as a TX/RX diplexer. Various antennas can be integrated with the module to form sensor heads for many system applications.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $15,015.00
2 $14,264.25
3 - 4 $13,551.04

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency76.50 GHz
Transmitting Power+23 dBm
Minimum IF FrequencyDC
Maximum IF Frequency3 GHz
Frequency Stability-6.0 MHz/°C
Power Stability-0.04 dB/°C
DC Bias+8.0 VDC/950 mA
ChannelSingle
