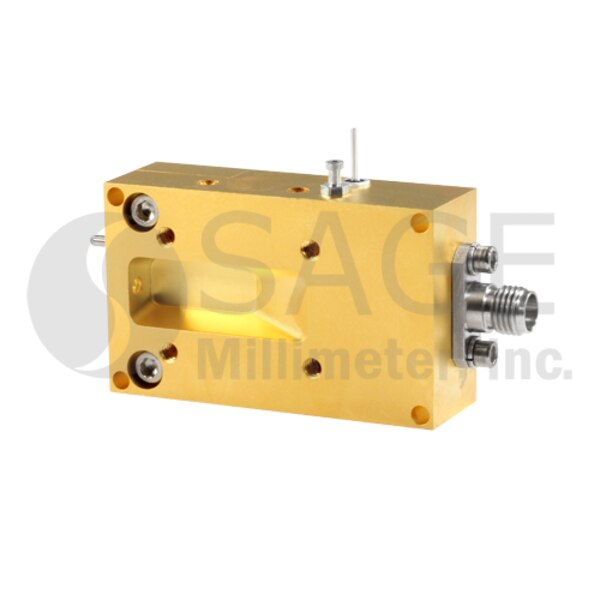

X2 Active Frequency Multiplier

75 to 86 GHz, +24 dBm Output Power, In-line WR-12 Waveguide, E-Band
SKU:SFA-753863224-12VF-E1
Availability:3 to 5 Days ARO
SFA-753863224-12VF-E1 is an active X2 frequency multiplier. The multiplier has an input frequency of 37.5 to 43.0 GHz with a typical input power of +5 dBm and an output frequency of 75 to 86 GHz with a nominal output power of +24 dBm. The multiplier also has a typical harmonic suppression of -20 dBc. The DC power requirement for the multiplier is +8 VDC/1000 mA. The input port configuration is a female V connector and the output is a WR-12 waveguide with a UG-387/U anti-cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency75 GHz
Maximum Output Frequency86 GHz
Output Power+24 dBm
Minimum Input Frequency37.5 GHz
Maximum Input Frequency43 GHz
Input Power+5 dBm
DC Bias+8 VDC/1000 mA
Output PortWR-12 WG
Input Port1.85 mm (F)
