E-Band Three Junction Circulator

75 to 80 GHz, 35 dB Isolation, WR-12 Waveguide
SKU:SNW-7538031535-12-CM

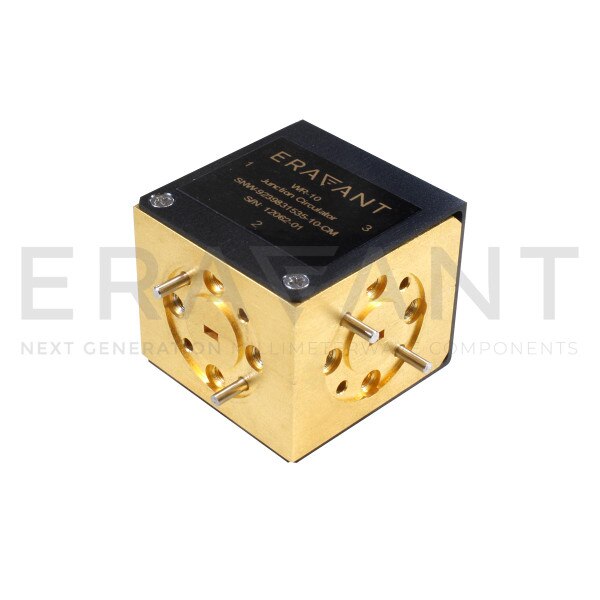

SNW-7538031535-12-CM is an E band waveguide three-junction circulator that covers the frequency range of 75 to 80 GHz. The three-junction waveguide circulator is designed and manufactured to provide a low insertion loss of 1.5 dB and a high port isolation of 35 dB between designated ports. The three-junction circulator is offered for high port isolation duplexing between the transmitter and receiver. Unlike single junction circulator, the three-junction circulator offer inherent high port insertion loss from port 3 to port 1 and slightly lower isolation from port 1 to port 3 due to its unique mechanical configuration. The RF ports of the circulator are WR-12 waveguides with UG-387/U anti-cocking flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,250.00
5 - 9 $2,025.00
10 - 24 $1,822.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency80 GHz
Insertion Loss1.5 dB
Isolation35 dB
Forward Power Handling3 W (CW)
Reverse Power Handling3 W (CW)
RF PortWR-12 Waveguide
Device TypeCirculator
