E-Band Junction Isolator

75 to 77 GHz, 18 dB Isolation, WR-12 Waveguide
SKU:SNW-7537730818-12-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

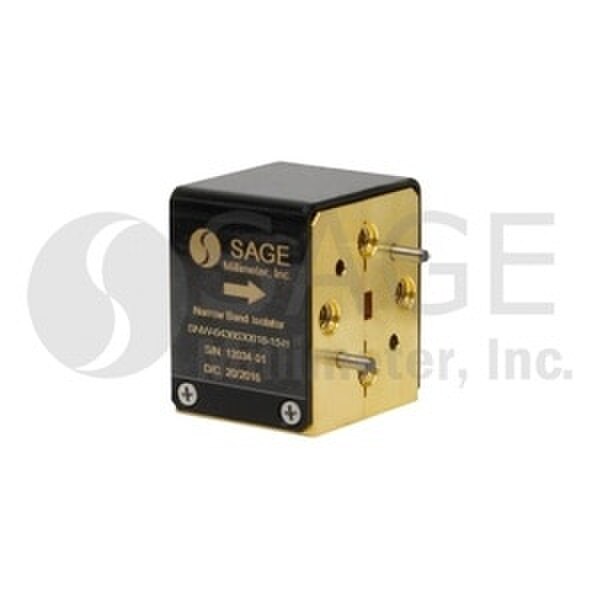

SNW-7537730818-12-I1 is an E band waveguide junction isolator that covers the frequency range of 75 to 77 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.8 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 18 dB. The input and output ports are WR-12 waveguides with UG-387/U flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $930.00
10 - 24 $837.00
25 - 49 $753.30

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency77 GHz
Insertion Loss0.8 dB
Isolation18 dB
Return Loss15 dB
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-12 Waveguide
Device TypeIsolator
