W-Band Noise Figure and Gain Test Extenders

75 to 110 GHz, WR-10 Waveguide
SKU:STG-10-S1

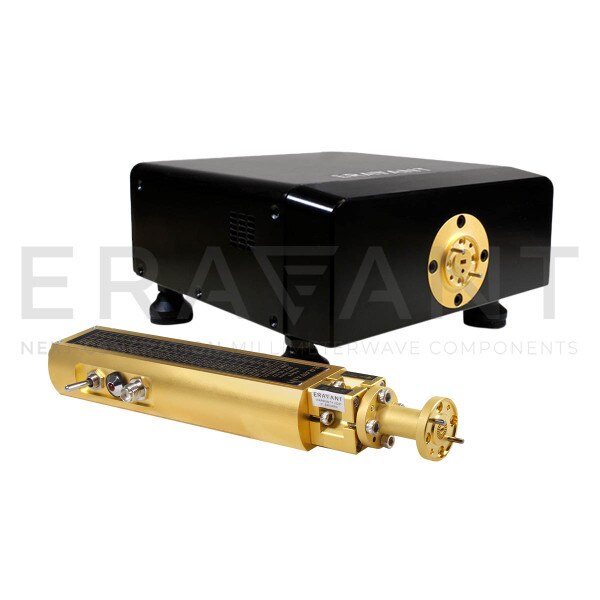

STG-10-S1 is a full W-Band noise figure and gain test extender that extends the noise and gain measurement capabilities of common and low frequency signal synthesizers and noise figure meters to the frequency range of 75 to 110 GHz . This extender is designed to interface with industry standard noise and gain test systems, such as Keysight 8970A/B and Y Factor with a spectrum analyzer. It can also interface with most noise and gain analyzers that utilize the input frequency 10.0 MHz to 1.6 GHz range.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency75 GHz
Maximum RF Frequency110 GHz
Noise Source ENR12 dB
Down-converter Minimum IF Frequency10 MHz
Down-converter Maximum IF Frequency1.6 GHz
Down-converter Gain20 dB
Down-converter Noise Figure12 dB
Power Supply100 VAC to 240 VAC
RF PortWR-10 Waveguide
