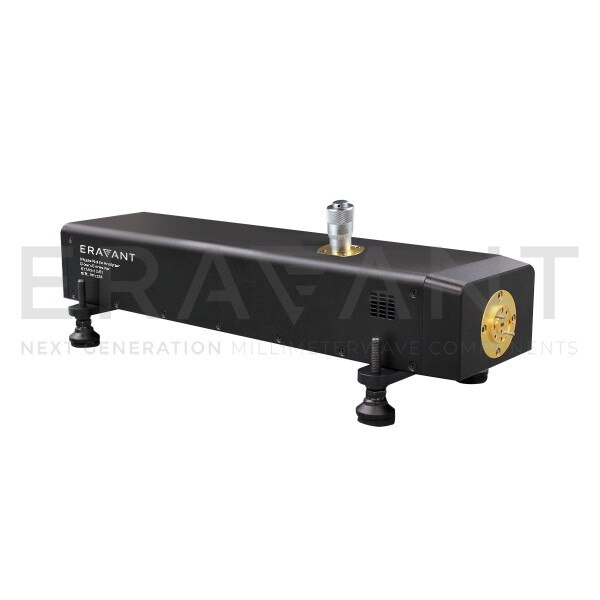

W-Band Phase Noise Analyzer Down-Converter

75 to 110 GHz RF Input, 10 MHz to 1.6 GHz IF Output, WR-10 Waveguide
STI-05-10-S1 is a W-Band phase noise analyzer (PNA) down-converter that converts millimeterwave (mmW) signals from a frequency range of 75 to 110 GHz to the baseband at 10 MHz to 1.6 GHz. The down-converter requires two +3 dBm driving power as its LO input signals at 12.5 to 18.33 GHz from the PNA. The down-converter then convert the DUT mmW signals up to +10 dBm to two IF outputs feeding low frequency PNA, such as Anapico’s APPH equipment, for phase noise analysis. The down-converter has low harmonic levels and excellent gain flatness, extending the microwave PNA to perform the phase noise testing beyond 50 GHz. Various models are available in full waveguide bands, from WR-15 to WR-03 are available to covering the frequency range of 50 to 330 GHz.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency75 GHz
Maximum RF Frequency110 GHz
Minimum IF Frequency10 MHz
Maximum IF Frequency1.6 GHz
Minimum LO Frequency12.5 GHz
Maximum LO Frequency18.33 GHz
Power Supply100 VAC to 240 VAC
RF PortWR-10 Waveguide
