W-Band Externally Biased Balanced Mixer

75 to 110 GHz, DC to 35 GHz IF, +3 dBm LO Power, WR-10 Waveguide
SKU:SFB-10-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

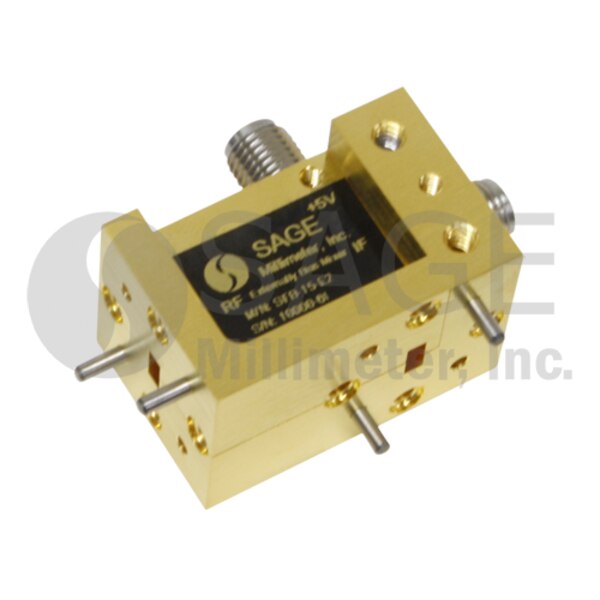

SFB-10-E2 is a W-Band, externally biased balanced mixer. The mixer supports the full waveguide band operation for both LO and RF frequencies from 75 to 110 GHz with an extremely broad IF output from DC to 35 GHz. The mixer offers a typical conversion loss of 10 dB. The externally biased mixer is used when high LO power is not available. Externally biased mixer works with low local oscillator (LO) power of 0 to +5 dBm when external bias of +5 VDC is applied. As a trade-off, LO to RF isolation is lower compared to non-biased mixers.

To prevent damage due to accidental over-bias or reverse bias, voltage regulator M/N SOR-05-SM-R1 is highly recommended.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency75 GHz
Maximum RF Frequency110 GHz
Minimum LO Frequency75 GHz
Maximum LO Frequency110 GHz
Minimum IF FrequencyDC
Maximum IF Frequency35 GHz
LO Pumping Power+3 dBm
RF PortWR-10 Waveguide
