W-Band Negative Amplitude Detector

75 to 110 GHz, 800 mV/mW Sensitivity, WR-10 Waveguide
Availability:3 to 5 Days ARO

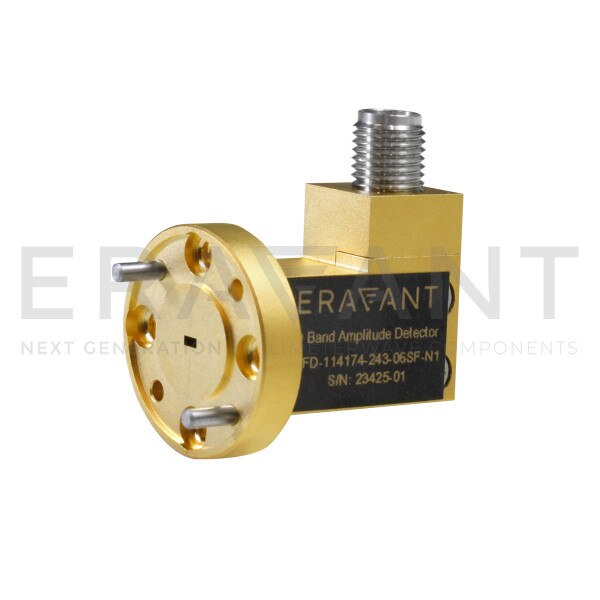

SFD-753114-103-10SF-N1 is a W Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics across the full waveguide operating bandwidth. The detector is designed to have a 10 MHz video bandwidth and a 1 MΩ video output impedance. The minimum detectable signal level is approximately -50 dBm.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Sensitivity800 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityNegative
RF PortWR-10 Waveguide
DC PortSMA (F)
