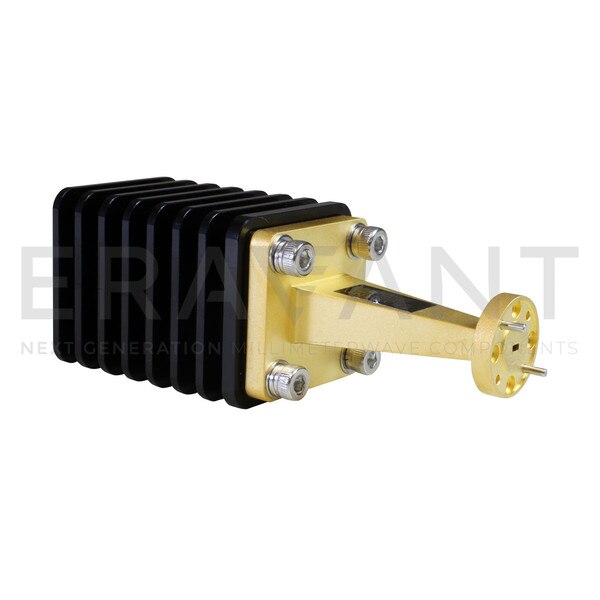

W-Band Fixed Termination Load

75 to 110 GHz, 50 W Power Handling, WR-10 Waveguide
SKU:SWL-1047-S8
Availability:4 to 6 Weeks ARO
SWL-1047-S8 is a high power, W-Band termination load that covers the frequency range of 75 to 110 GHz. The termination load exhibits a typical return loss of 25 dB and 50 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $830.00
5 - 9 $750.00
10 - 24 $675.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Power Handling, Watts50 W
Power Handling, dBm47 dBm
Return Loss25 dB
Load TypeFixed
Waveguide PortWR-10 Waveguide
