W-Band Radiometric Receiver

75 to 110 GHz, 4 dB Noise Figure, 23 dB Video Amplifier Gain
SKU:SSR-9333534040-10-M4
Availability:10 to 12 Weeks ARO

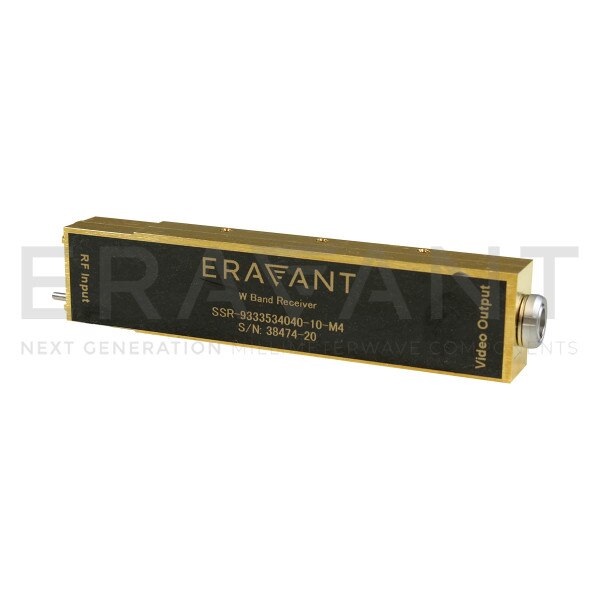

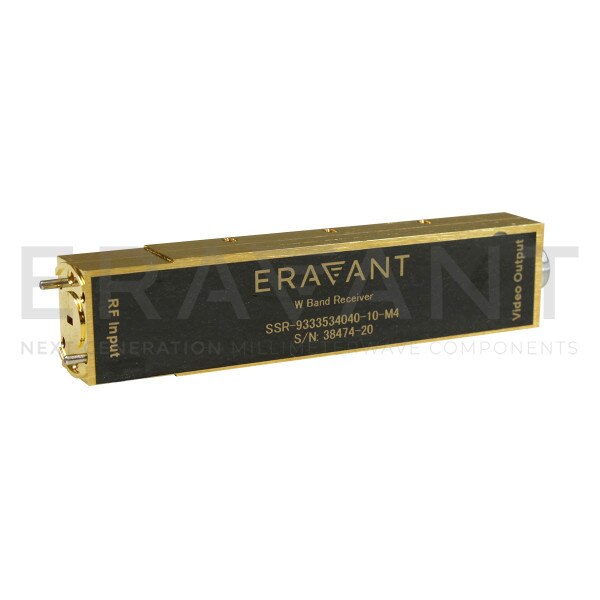

SSR-9333534040-10-M4 is a W-Band direction based radiometric receiver that can be used to measure the average power of the noise coming from a physical object in frequency range of 75 to 110 GHz. By averaging large number of independent samples, this radiometric receiver can determine the average noise power with a fractional uncertainty. The receiver LNA has a typical gain of 40 dB with a typical noise figure of 4 dB. The receiver includes a high sensitivity Schottky diode detector with a 23 dB typical gain video amplifier. The receiver is designed and manufactured for passive image camera applications. The RF port of the receiver is a WR-10 waveguide with a UG-387/U-M anti-cocking flange. The DC bias and the video output is combined via a LEMO connector for high EM isolation. With large selection of ERAVANT standard and custom antennas, many radiometric receivers can be formed and readily available for various radiometric system applications.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $5,400.00
2 - 24 $4,860.00
25 - 49 $3,591.96

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency75 GHz
Maximum RF Frequency110 GHz
Noise Figure4 dB
Gain23 dB (Video Amplifier)
Bias Voltage+5 VDC
RF PortWR-10 Waveguide
