W-Band Low Noise Amplifier

75 to 110 GHz, 35 dB Gain, 5.0 dB Noise Figure, In-line WR-10 Waveguide
SKU:SBL-7531143550-1010-E1
Availability:3 to 5 Days ARO

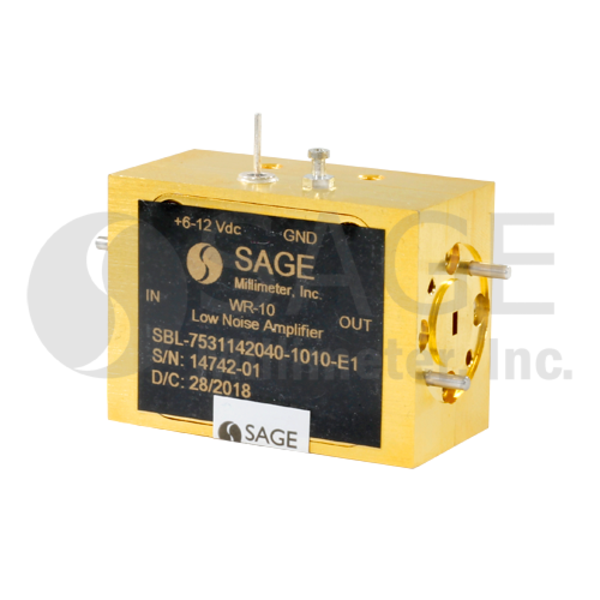

SBL-7531143550-1010-E1 is a W-band low noise amplifier with a typical small signal gain of 35 dB and a nominal noise figure of 5 dB across the frequency range of 75 to 110 GHz. The DC power requirement for the W-band low noise amplifier is +8 VDC/100 mA. The mechanical configuration offers an in line structure with WR-10 waveguides and UG-387/U-M anti-cocking flanges. Other port configurations, such as with 1 mm connectors or a right angle structure with WR-10 waveguides, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Gain35 dB
Noise Figure5.0 dB
P1dB-5 dBm
Input Return Loss6 dB
Output Return Loss8 dB
DC Bias+8 VDC/100 mA
RF Input/OutputWR-10 Waveguide
