W-Band Reflective SPDT PIN Diode Switch

75 to 110 GHz, 30 dB Isolation, WR-10 Waveguide
SKU:SKD-7531143530-1010-R1-M
Availability:1 Week ARO

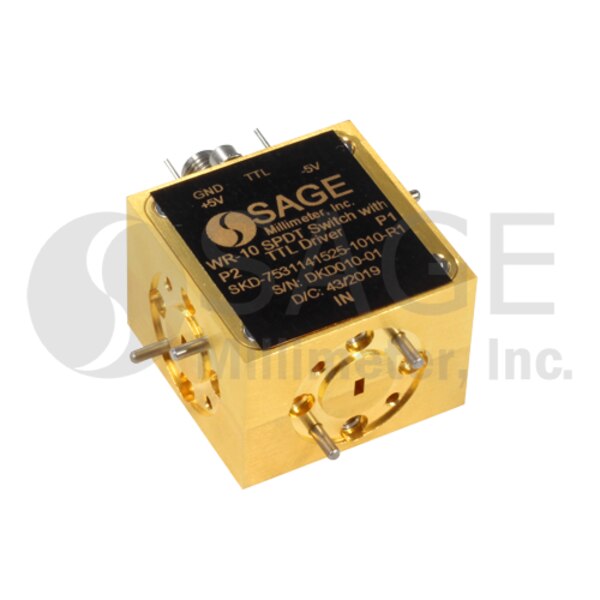

SKD-7531143530-1010-R1-M is a reflective PIN diode based, single pole, double throw (SPDT) switch with a TTL driver that operates from 75 to 110 GHz. The SPDT switch requires a separate -5 V and +5 V biasing in addition to the TTL control. This model has an insertion loss of 3.5 dB typical and an isolation of 30 dB nominal at its center frequency. The SPDT switch features WR-10 waveguides with UG-387/U-M anti-cocking flanges at the RF input and output and a female SMA connector for TTL control on the driver.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,650.00
3 - 4$3,467.50
5 +$3,294.13

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss3.5 dB
Isolation30 dB
Power Handling+30 dBm
Bias±5 VDC/10 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-10 Waveguide
