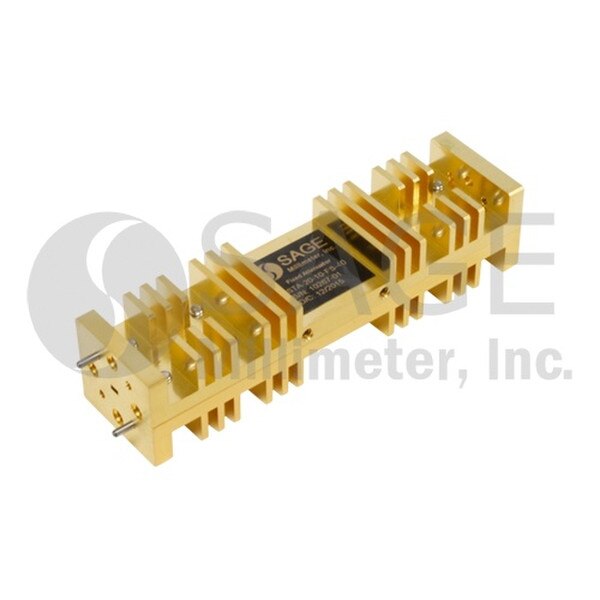

W-Band Fixed Attenuator

75 to 110 GHz, 3 dB, 10 Watt Power Handling, WR-10 Waveguide
SKU:STA-03-10-FS-40
Availability:1 Week ARO
STA-03-10-FS-40 is a 10 watt fixed attenuator that is used in millimeterwave systems and operates from 75 to 110 GHz. The attenuator has a nominal fixed attenuation value of 3 dB across the entire W band. The attenuator is uniquely designed and fabricated for full waveguide band applications and displays an extremely flat frequency response across the full bandwidth. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,020.00
5 - 9$918.00
10 - 24$826.20

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Attenuation3 dB @ 92.5 GHz
Return Loss21 dB
Power Handling10 W
RF PortWR-10 Waveguide
Attenuator TypeFixed
